Manufacture & Materials Specs

Our table are manufactured 100% in solid wood. We chose European Ash wood due the good strength properties and shock resistance. This wood has a medium to coarse texture, the grain is almost always straight and regular, though sometimes curly or figured boards can be found. This wood species is not listed in the CITES Appendices or on the IUCN red List of Threatened Species. The vault is made in birch plywood, very dense board manufactured from birch veneers throughout, harvested from FSC certified forests, bonded together with a high resistant phenol adhesive, which has superior resistance to loss of bond strength with time. Birch wood is a fine textured, strong, dense timber which is excellent for engineering applications where precision, stability, flatness and strength.

We use the traditional solid wood construction techniques, reinforcing them with some metallic components. The exterior rim has a steel trim to place our magnetic accessories. The feet have adjustable glides and an integrated steel reinforcement to facilitate assembly and improve the stability of the table. The wood tops are stabilized by a steel reinforcing profile.

The tables are completely finished with a solvent-based polyurethane finishing, interior and exterior, varnish with a high resistance varnish with UV protection.

Sizes

  • LN00

Overall 160cm x 100cm x 78cm (62,99” x 39,37” x 30,70”)

Vault 138cm x 78cm x 7,5cm (54,33” x 30,70” x 2,95”)

  • LN01

Overall 180cm x 110cm x 78cm (70,86” x 43,30” x 30,70”)

Vault 158cm x 88cm x 7,5cm (62,20” x 34,64” x 2,95”)

  • LN02

Overall 200cm x 120cm x 78cm (78,74” x 47,24” x 30,70”)

Vault 178cm x 98cm x 7,5cm (70,07” x 38,58” x 2,95”)

  • LN03

Overall 230cm x 140cm x 78cm (90,55” x 55,11” x 30,70”)

Vault 208cm x 118cm x 7,5cm (81,88” x 46,45” x 2,95”)

  • Custom size

Send us the desired size to info@minhamadeira.pt. Please note that the vault size is equal to the overall size minus 22cm (8,66”). Example: 100cm x 100cm (39,37” x 39,37”) = vault 78cm x 78cm (30,71” x 30,71”).

Finishings colors

Are available 4 different stains with solvent-based polyurethane finishing. This procedure consist in 2 stain coatings, 2 sealer coatings and 1 coating of high resistance varnish with UV protection. UV protection slows the damage caused by exposure to UV rays.



  • Nature

  • Tabac

  • Nut

  • Ebony

  • Iron

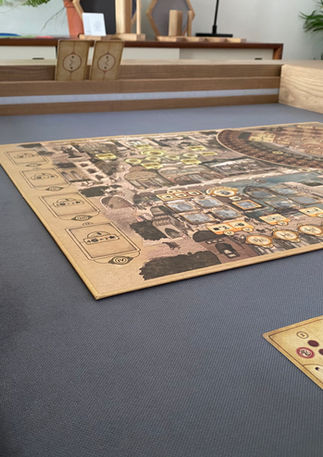

Fabric Vault

The vault on our tables are upholstered with high density foam of 60 kg / m3. This density factor is able to guarantee a flat and stable surface, which allows you to grab cards and gaming pieces, keeping a solid playing surface. Foam density is a specific measurement of how much weight in kilograms polyurethane foam can handle per cubic meter. This density rating tells you the strength of the foam. The height the number the longer the foam will last.



  • Velvet

Features: Hydrocare, Cigarette Resistant

Surface Composition: 100% Polyester

Backing Composition: 70% Polyester + 30% Cotton

Abrasion Test: 30.000

HydroCare - Internationally recognized concept has been tested through a water-repellent technology, which prevents the infiltration of dirt, allowing an easier and effective cleaning. This treatment prevents the appearance of dirt, keeping the fabric dry and clean.

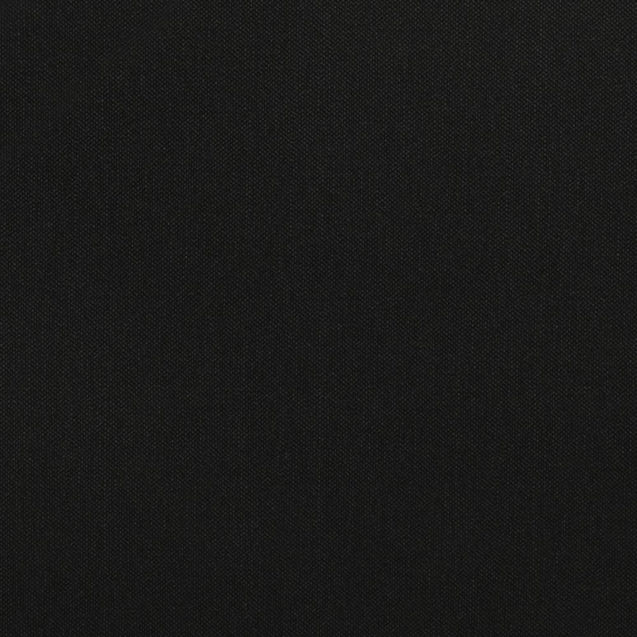

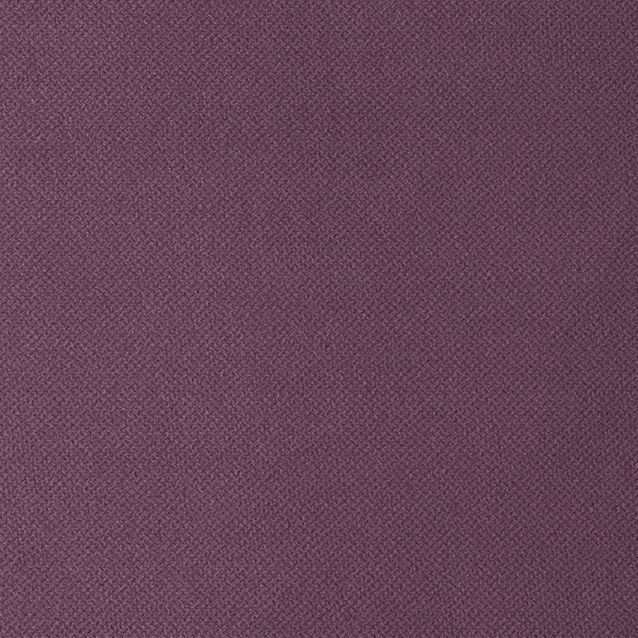

Avaiable Colors: VL01 BLACK – VL02 ASH – VL03 DARK BLUE – VL04 DARK GREY – VL05 LIGHT GREY – VL06 PURPLE – VL07 RED – VL08 TOFFEE



  • Synthetic

Features: Hydrocare, Anti-stain, Cigarette Resistant

Surface Composition: 100% Polyester

Backing Composition: 100% Polyester

Abrasion Test: 100.000

Easy to Clean - This technologically innovative concept, which is embedded in the fabric allows the clean-up of the article using only water. It allows an easy removal of stains of coffee, ink, chocolate, wine, etc.

Avaiable Colors: ST01 BLACK – ST02 ANTHRACITE – ST03 BLUE MARINE – ST04 BURGUNDY – ST05 DEEP GREEN – ST06 GRASS – ST07 OCEAN – ST08 PEARL – ST09 RED – ST10 SKY – ST11 TOFFEE

Lighting System

You can equip your table with 2 types of lighting systems. This will make your gaming experience awesome, eliminating shadows caused by the existing lighting in the environment and helping to identify the colors of the games.



  • LN50 RGB LED system

The 14W RGB LED strips are installed with a heatsink profile and a diffused light cover. It comes with a three-channel controller. The color wheel allows you to define three different colors at the same time and adjust different light intensity for each channel.

With this system it is possible to add 2 USB modules, each on each side of the table. Each module has two ports, you can load up to 4 devices simultaneously.



  • LN51 LED system

The 14W LED strips are installed with a heatsink profile and a diffused light cover. It comes with a controller that’s allows you to adjust the light intensity. You can choose the LED color you want, 3000K, 4500K or 6000K. A 3000K LED produces soft white or warm white or yellowish color light. This one is best for places where you relax such as the living area since this kind of color temperature gives you a cozy feeling. A 4500K LED produces a bright white or cool toned kind of color which gives a warm effect as well as bright enough to work beneath it. A 6000K LED or as the scientists call “pure white light” produces usually an exotic or more luxurious look.

With this system it is possible to add 2 USB modules, each on each side of the table. Each module has two ports, you can load up to 4 devices simultaneously.

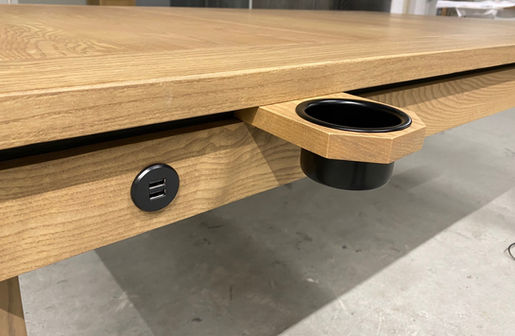

USB charger

LN52 USB add-on allow to charge your phone, tablet, power bank, or other device, it is possible to install in your table 2 USB modules, each on each side of the table. Each module has two ports, you can load up to 4 devices simultaneously.

Wood add-ons

Your table comes equipped with an exterior steel trim to place the magnetic accessories. We have differents wooden accessories that you can easily attach to the table, As this system is magnetic, you can place the accessories all around the table and move freely on the rail.

  • LN40 Wine glass holder

  • LN41 Cup holder

  • LN42 Phone holder

  • LN43 Player holder

  • LN44 Extra Strake Board

  • LN45 Dice Holder

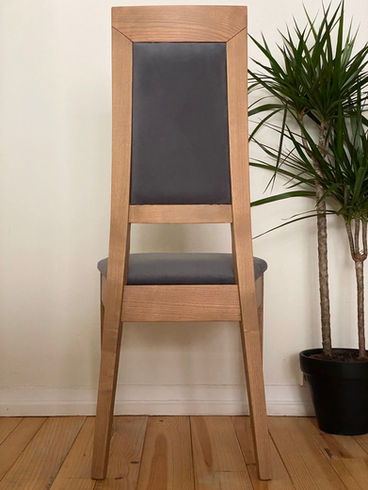

Chairs

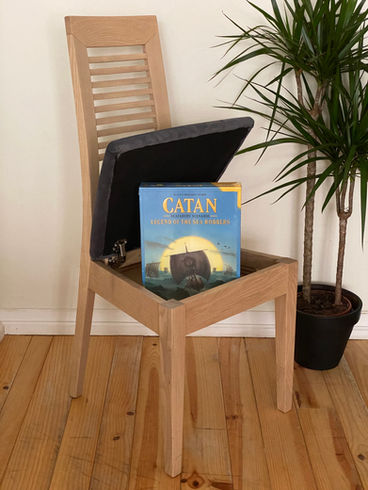

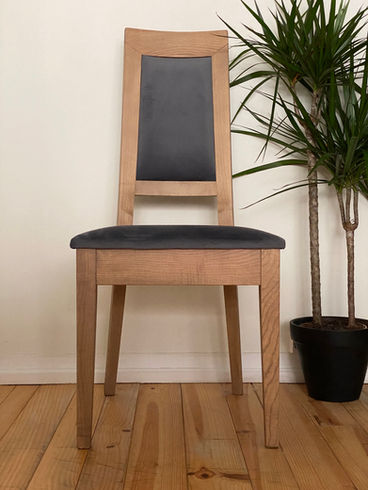

The chairs have a vault under the seat. The structure is in solid wood and the design of the back is ergonomic. The upholstery is made with high performance foams, allowing the best comfort and shape recovery.

Sizes

  • LN30

Overall 48cm x 52cm x 100cm (18,89” x 20,47” x 39,37”)

Vault 30cm x 25cm x 7cm (11,81” x 9,84” x 2,75”)

  • LN31

Overall 48cm x 52cm x 100cm (18,89” x 20,47” x 39,37”)

Vault 30cm x 25cm x 7cm (11,81” x 9,84” x 2,75”)

Lead time & Production

The production lead time is 45 to 90 days, depending on the production phase at the time of your order. After your ordering you will receive the order confirmation with the precise lead time.



Packaging & Delivery

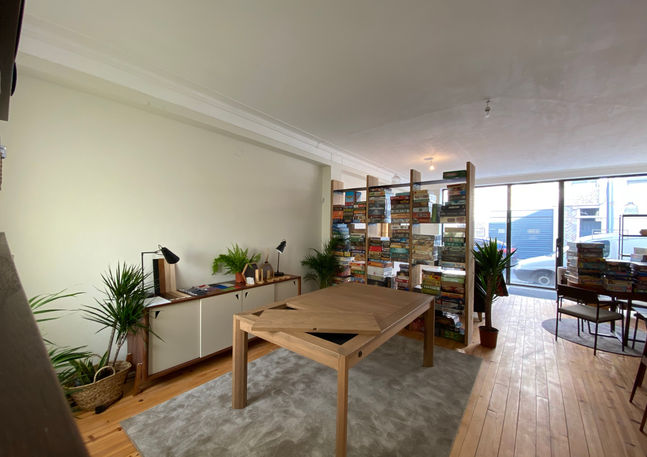

The table is packed in 3 volumes and you can choose to collect them at our showroom in Matosinhos or request us a transport service. The transport service is carried out by a specialized company, door to door service and delivered on the ground floor.



Packaging Size and Weight

  • LN00 – Table 160x100 (62,99” x 39,37”)

1 Package – 172cm x 112cm x 23cm (67,70" x 44,09" x 9,05") – 55Kg (121lb 4oz)

1 Package – 90cm x 45cm x 21cm (35,43" x 17,71" x 8,27") – 20Kg (44lb 1oz)

1 Package – 87cm x 32cm x 32cm (34,25" x 12,60" x 12,60") – 16Kg (35lb 4oz)



  • LN01 – Table 180x110 (70,86” x 43,30”)

1 Package – 192cm x 122cm x 23cm (75,59" x 48,03" x 9,05") – 65Kg (143lb 5oz)

1 Package – 100cm x 50cm x 21cm (39,37" x 19,68" x 8,27") – 20Kg (55lb 2oz)

1 Package – 87cm x 32cm x 32cm (34,25" x 12,60" x 12,60") – 16Kg (35lb 4oz)



  • LN02 – Table 200x120 (78,74” x 47,24”)

1 Package – 212cm x 132cm x 23cm (83,46" x 51,96" x 9,05") – 75Kg (165lb 5oz)

1 Package – 110cm x 55cm x 21cm (43,30" x 21,65" x 8,27") – 30Kg (66lb 2oz)

1 Package – 87cm x 32cm x 32cm (34,25" x 12,60" x 12,60") – 16Kg (35lb 4oz)



  • LN03 – Table 230x140 (90,55” x 55,11”)

1 Package – 242cm x 152cm x 23cm (95,27" x 59,84" x 9,05") – 75Kg (209lb 7oz)

1 Package – 130cm x 70cm x 21cm (51,18" x 27,55" x 8,27") – 40Kg (88lb 3oz)

1 Package – 87cm x 32cm x 32cm – 16Kg (34,25" x 12,60" x 12,60") – 16Kg (35lb 4oz)

Maintenance

The method of cleaning is wiping the surface with a soft and dry cloth or a slightly moist, supple chamois in the direction of the wood grain. Prohibited are: Bleaching additives (e.g. lemon) and all other cleaning and scouring agents. Do not clean the surfaces with microfibre cloths and all liquids containing acid, e.g. fruit juices or alcohol, should be dabbed away.
